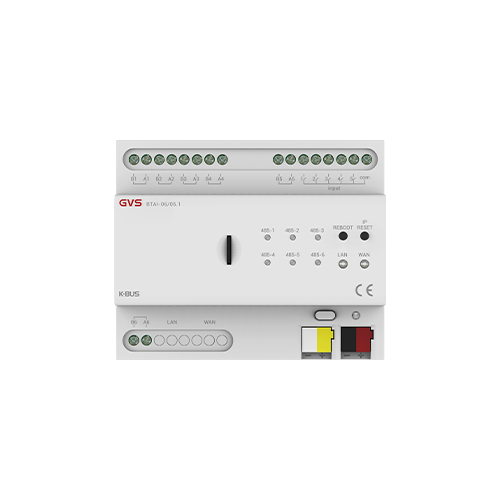

KNX Multifunctional Gateway_V1.3

KNX Multifunctional Gateway_V1.3

KNX Multifunctional Gateway is a device that supports both remote control and LAN control. Users can easily utilize the "GVS Smart" app to control the gateway and its associated sub-devices, furthermore, the status of devices can be synchronized and displayed within the app. This gateway supports various device types, including KNX devices, RS485 devices, third-party TCP/IP protocol devices, and dry contact devices. Data configuration for the gateway can be done through the dedicated configuration app "GVS Smart Assistant" which allows for editing and writing configurations.
Model
BTAI-06/05.1
Product parameter
Power Supply
Bus voltage 21~30V DC , via the KNX bus
Bus current <5mA
Bus consumption <150mW
Auxiliary Supply
Voltage 9-36V DC
Current <98.5mA/24V; <80mA/30V
Consumption <2.4W
Weight
0.26kg
Temperature
Operation – 5 °C ... 45 °C
Storage – 25 °C ... 55 °C
Transport – 25 °C ... 70 °C
Ambient
Humidity <93%, except dewing
Dimension
108 × 90 × 64mm
Mounting
Standard 35mm DIN rail installation
