Home > Products > K-BUS(KNX) > Protocol gateway > KNX IR Transmitter, Flush-mounted, 2-Fold

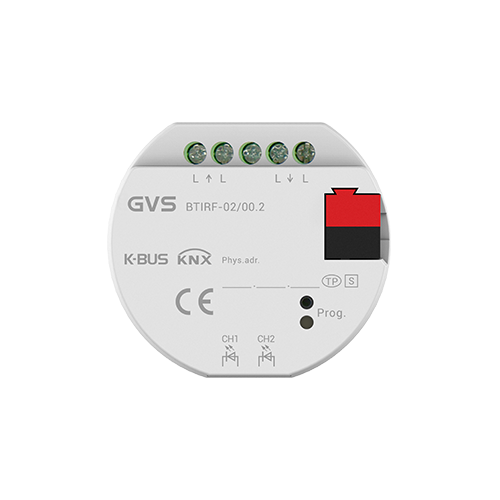

KNX IR Transmitter, Flush-mounted, 2-Fold

Transimitting distance max. 2m, 1 fold 10A current detection. Support normal IR control of 30 IR codes, for air-condition control up to 266 IR codes. Support DCA APP in ETS configuration.Installation: Flush Mounted, fits in 86*86mm and German 60mm wall boxes.

Model

BTIRF-02/00.2

Manual

Product parameter

Weight: 0.04kg
Dimension: φ53×23.5mm
Bus voltage: 21-30V DC, via the KNX bus
Bus current: <6.5mA, 24V ；<6mA, 30V
Bus consumption: <180mW
Dynamic current: <9.5mA, 24V ；<8mA, 30V

Connection: KNX, Bus connection terminal(Red/Black)
Operation: -5 °C ... 45 °C
Storage: -25 °C ... 55 °C
Transport: -25 °C ... 70 °C
Humidity: <93%, except dewing
IR wavelength: 940nm
