KNX-DALI-2 Gateway,1/2-Fold
/uploads/2024/11/181018212885.png
/uploads/2024/11/181018167290.png

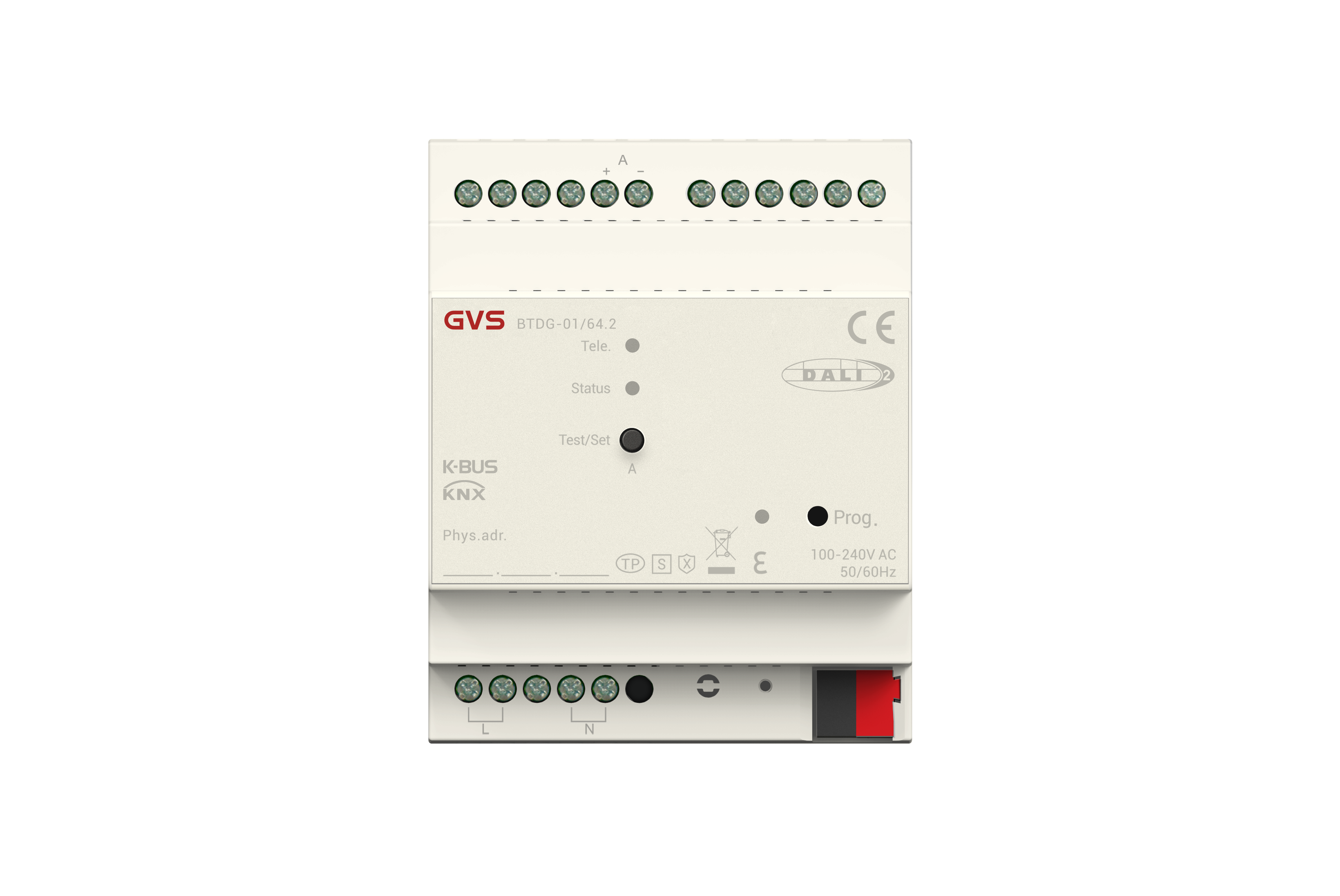

KNX-DALI-2 Gateway,1/2-Fold

KNX-DALI-2 Gateway, 1/2-Fold is designed for KNX intelligent building control system and used to connect KNX bus and DALI bus. As the interface between KNX installation system and DALI network, messages from the KNX bus can be converted into information that can be identified by the DALI device via this gateway. The information contains the DALI device address and command, and send to the DALI network to control the DALI device, thus to realize the functions of switching, dimming, brightness value, colour temperature, colour control, etc. of various lamps etc. of various lamps with DALI ballasts, while the DALI gateway can request the status of the DALI device, failure detection, and convert the status and failure information into KNX telegrams, and send to the KNX bus.
Model

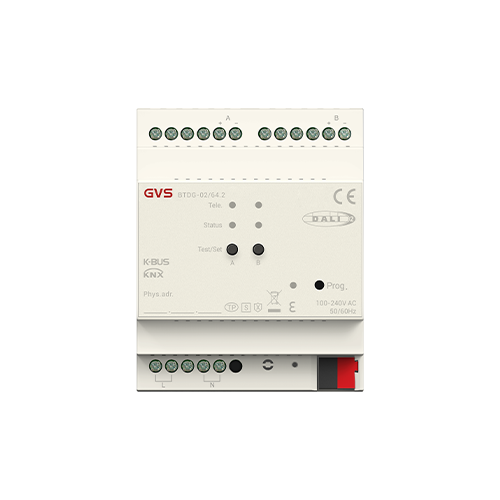

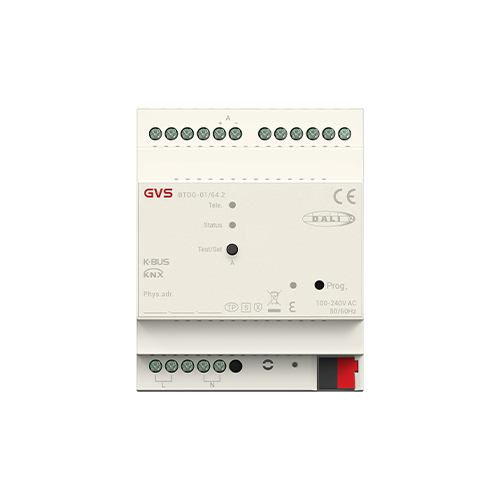

BTDG-01/64.2 BTDG-02/64.2
Product parameter
Weight: 0.25KG
Dimensions: 72mm ×90mm ×64mm
Operation voltage: 21-30V DC, via the KNX bus
Auxiliary supply Voltage: 12-30V DC
DALI Output :1/2 Channel Max.64 DALI devices per channel
Connections: KNX, Bus connection terminal(red/black)
Operation: – 5 °C ... + 45 °C
Storage: –25 °C ... + 55 °C
Transport: – 25 °C ... + 70 °C
Humidity: <93%, except dewing
Design: Standard 35 mm DIN rail installation
