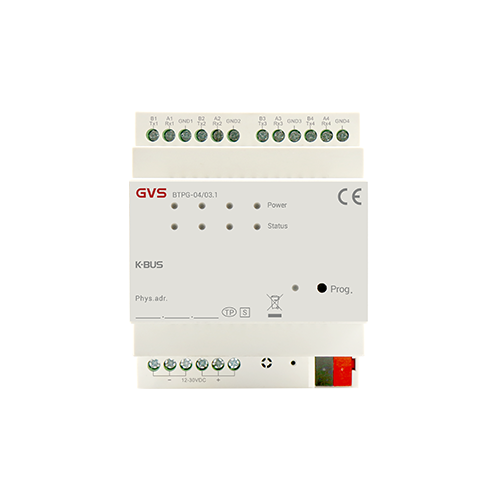

KNX/RS485/RS232 Multi-Protocol Bidirectional Converter
KNX/RS485/RS232 Multi-Protocol Bidirectional Converter

KNX/RS485/RS232 Multi-Protocol Bidirectional Converter

By defaut it contains 1 fold of KNX/RS485 converter. Another 3 folds of KNX/RS232 or KNX/RS485 converter boards can be added to form a device with flexible folds of 1RS485 + (1~3) RS485/RS232. Installation: DIN-rail Mounted

Description

1. Support the integration of Modbus and KNX system, with master and slave mode, and up to 500 datapoints

2. Support data communication between RS232 and KNX system, and up to 100 datapoints

3. Support data communication between RS485 and KNX system, and up to 100 datapoints

4. Support the control of VRV/VRF air conditioners with Modbus RTU control protocol, such as DAIKIN, HITACHI, Mitsubishi, Fujitsu, Gree, Toshiba, etc.

5. Support the control of DOOYA 485 curtain motor

6. Support the control of some audio hosts unit in china manufacturers, such as backaudio, Yodaar, MiYue, cnWise, etc.


share
  • Bus voltage
    21-30V DC, Via KNX bus
  • Bus current
    <6mA 30V DC
  • Bus consumption
    <180mW
  • Auxiliary voltage
    12-30V DC
  • Auxiliary current
    <60mA 30V DC
  • Auxiliary consumption
    <1.8W
  • Model
    BTPG-04/03.1
