KNX/ Tuya-Zigbee Gateway 2.0
Work as a KNX/ZigBee Gateway pro, upload KNX devices to Tuya platform for management, support KNX functions including lighting, curtain control, scene control, temperature control, AC, background music, HVAC, logic functions etc. Support Tuya APP to control KNX devices, and vice verse. Installation: DIN-rail Mounted
As a ZigBee Gateway function, it can connect to Tuya Cloud, and add ZigBee device of Tuya ecosystem to the cloud
Support uploading KNX devices to Tuya platform for management, to control KNX device and display status
Support KNX devices functions, including Switch, Dimming, Curtains, Scenes, Colour and Colour temperature control, Audio control, HVAC control(Room temperature control, Air conditioner and Ventilation system), multiple sensors(Air Quality,Temperature and humidity, Brightness, Gas, I/O signal and etc.), and Current, Energy Metering display
Logic functions
-
Bus voltage21-30V DC，via the KNX bus
-
Bus current<4.5mA, 24V ；<4mA, 30V
-
Bus consumption<120mW
-
Voltage12-30V DC
-
Current<60mA，24V ；<50mA，30V
-
Consumption<1.5W
-
KNXBus connection terminal(Red/Black)
-
Auxiliary SupplyBus connection terminal(Yellow/White)
-
LANRJ45 socket for 100 Mbit and 10 Mbit BaseT, IEEE 802.3 networks
-
AntennaRubber rod antenna or extension antenna
-
Operation– 5 °C ... 45 °C
-
Storage– 25 °C ... 55 °C
-
Transport– 25 °C ... 70 °C
-
Humidity<93%, except dewing
-
DesignStandard 35mm DIN rail installation
-
Dimension36 x 90 x 64mm
-
Weight0.15kg
-

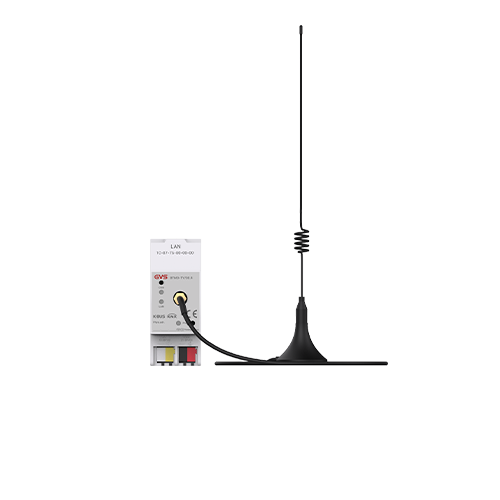

ModelBTMO-TY/00.3(Pole)、 BTMO-TY/00.4(Extending)
