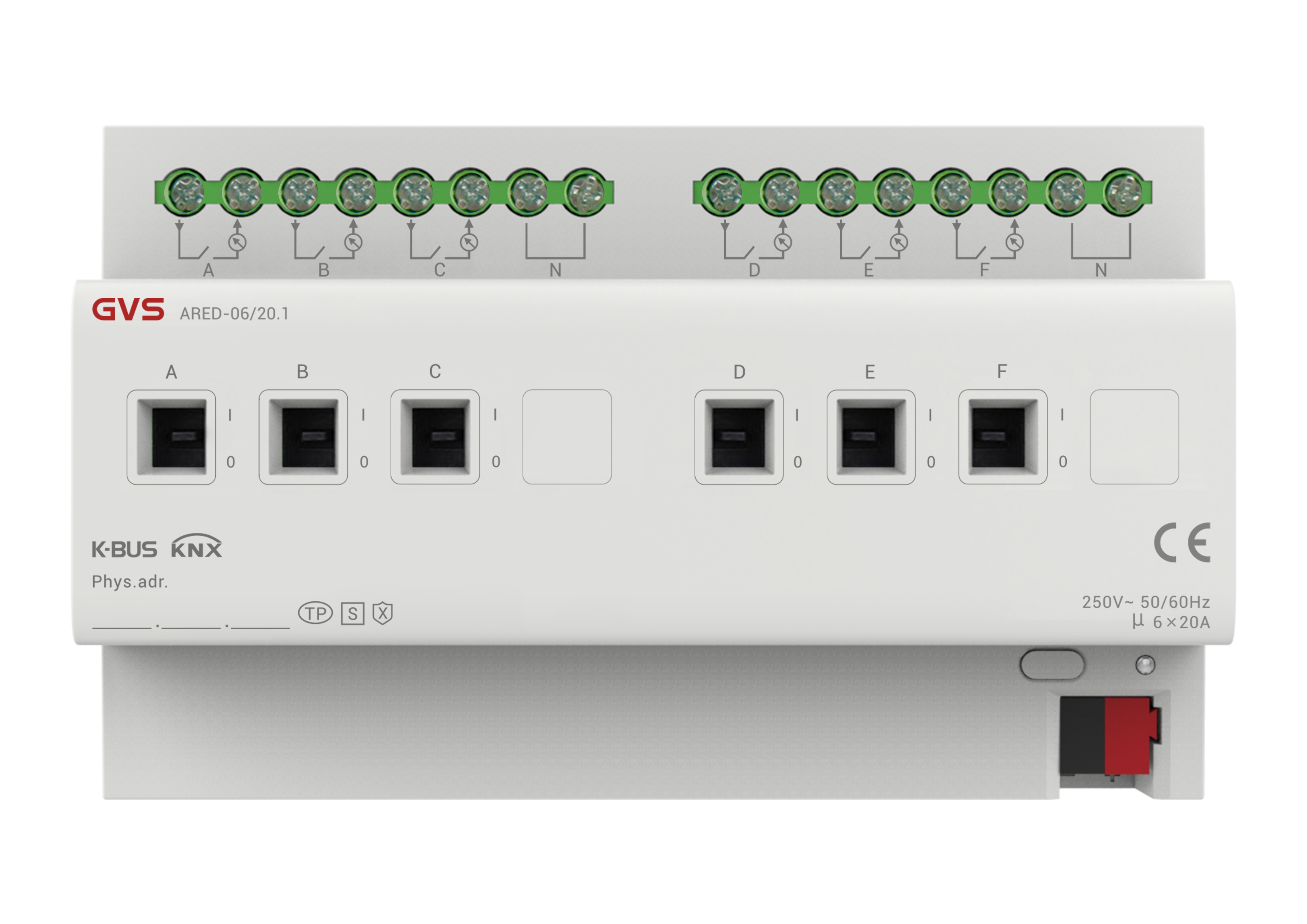

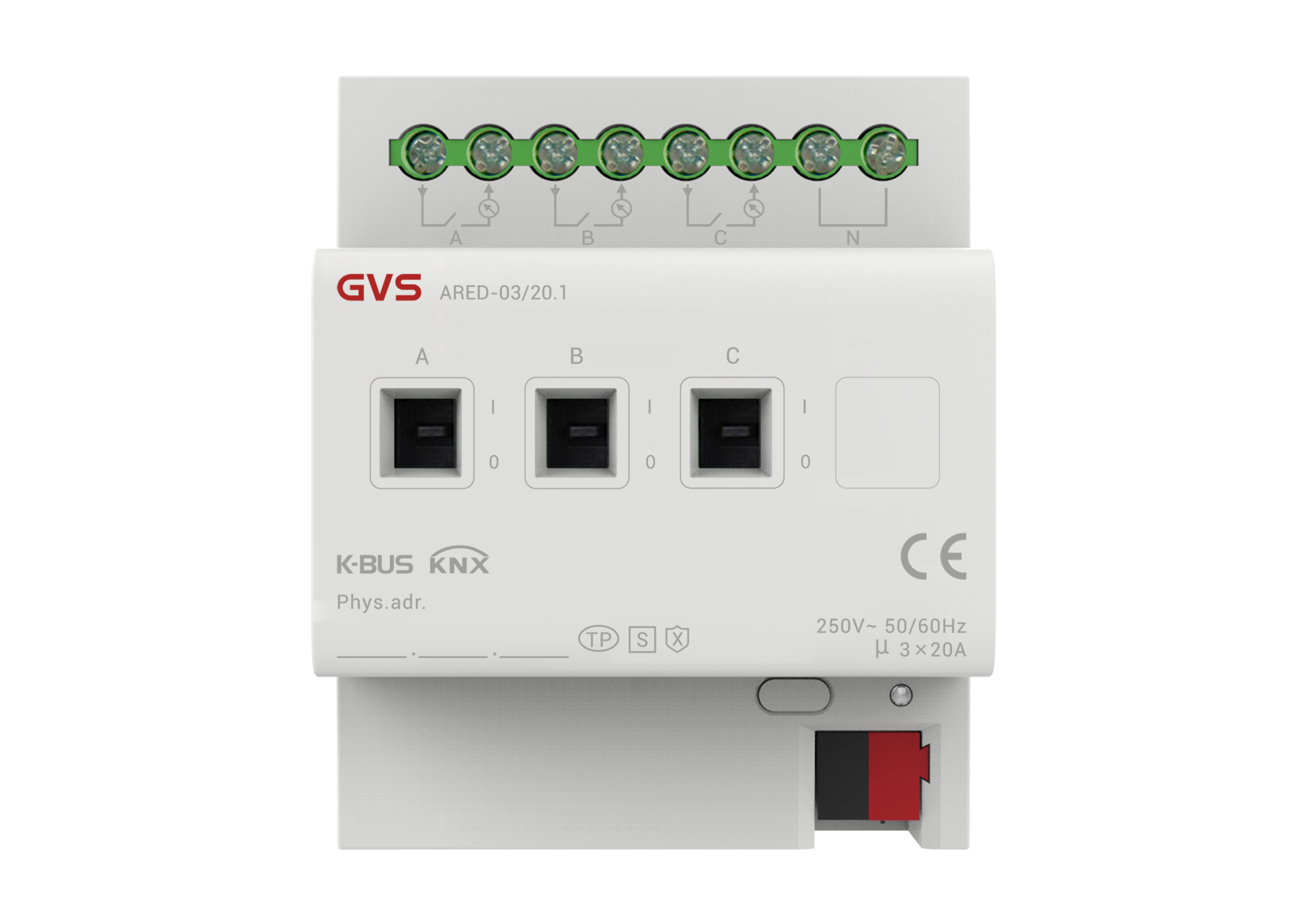

Switch Actuator with Energy detection, 3/6-Fold, 20A
Switch Actuator with Energy detection(hereinafter referred to as switch actuator) is mainly applied
in building control system, connected to the BUS via KNX terminals and installed together with other
devices on the bus to become a system.
model
ARED-06/20.1 ARED-03/20.1
Product parameters
Power Supply
Bus voltage
21~30V DC, via the KNX bus
Bus current
3-Fold: <14.5mA/24V, <12mA/30V
6-Fold: <24.5mA/24V, <20mA/30V
Bus consumption
3-Fold: <360mW; 6-Fold: <600mW
Charging current
3-Fold: <27.5mA; 6-Fold: <45.5mA
Operation and display
Red LED and push button
For assigning the physical address
Green LED flashing
For display the application layer running
normally
Green LED on
Relay power is charging or delay when
startup
Connections
KNX
Bus connection terminal (black/red)
Load circuits
Screw terminals
Cable cross-section
0.2—6.0mm2
Temperature
Operation
–5 °C ... + 45 °C
Storage
–25 °C ... + 55 °C
Transport
–25 °C ... + 70 °C
Ambient
Humidity
<93%, except dewing
