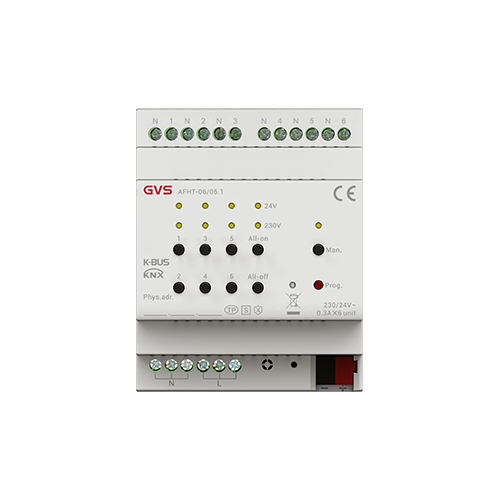

Heating Actuator with Triac, 6-Fold (with KNX Secure)
Heating Actuator with Triac, 6-Fold (with KNX Secure)

Heating Actuator with Triac, 6-Fold (with KNX Secure)

Manual&Database

Supports 24V AC or 230V AC thermal drive. 6 independent valve outputs, Max. 300mA/channnel. 6 channels of room temperature controller: support heating/cooling mode, integrating 2-point and PI control algorithm, with 5 scenes functions.

Description

Thermal driving can support to 24V AC or 230V AC

Valve output function, with local or external controller, up to 6 channels

Room temperature controller, support to heating/cooling mode, integrating 2-point and PI control algorithm, with 5 scenes functions, up to 6 channels

Manual operation

Summer / Winter mode

Valve purge function

Valve disable function

Forced operation function

Operating voltage failure report

Short-circuit / overload report

Support KNX secure

share
Additional information
  • Bus voltage
    21-30V DC, via the KNX bus
  • Bus current
    <6.5mA 24V, <5.5mA 30V
  • Bus consumption
    <165mW
  • Voltage
    24V / 230V AC
  • Valve channel
    6 channels
  • Switching current
    ≤300mA, per channel (Ambient temperature 35℃)
  • Voltage
    24V / 230V AC
  • Protection
    Short-circuit / overload protection
  • KNX
    Bus connection terminals (Red/Black)
  • Inputs / Outputs
    Screw terminals, Wire Range、 Multi-core 0.2-1.5mm2 , Single core 0.2-2.5mm2 , Torque 0.4N-m
  • Environment
    On 35mm mounting rail
  • Dimension
    72 x 90 x 64 mm
  • Weight
    0.3KG
  • Model
    AFHT-06/05.1
