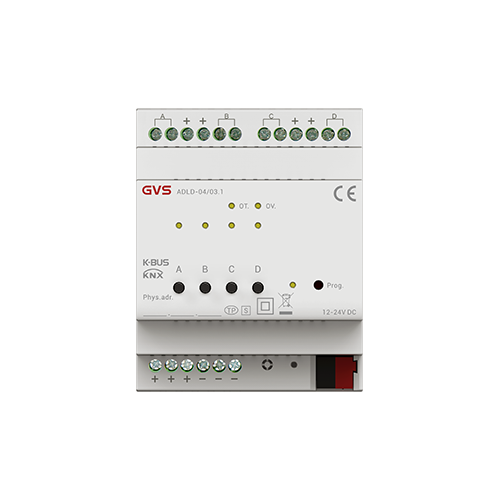

KNX LED Dimming Actuator 4-Fold, 4A
Constsant voltage drive mode, input 12-24V DC, rated current 4A, RGBW control. KNX functions including swicth, relative & absolute dimming, status response, scene control (15 folds), preset, staircase lighting etc.
Installation: DIN-rail Mounted
model
ADLD-04/03.1
Product parameters
Dimensions/ Weight: KA/D0203.1--- 90×144×64 mm / 0.5kg,
KA/D0403.1---90×216×64 mm / 0.75kg
Operating voltage: 21-30V DC, via the KNX bus
Input voltage: 230V AC (50/60Hz)
Output voltage: 230 V AC (50/60Hz), short-circuit
and excess temperature protection
KA/D0403.1---90×216×64 mm / 0.75kg
Operating voltage: 21-30V DC, via the KNX bus
Input voltage: 230V AC (50/60Hz)
Output voltage: 230 V AC (50/60Hz), short-circuit
and excess temperature protection
Connection: KNX, Bus connection terminals (Red/Black)
Operation: – 5 °C ... + 45 °C
Storage: –25 °C ... + 55 °C
Transport: – 25 °C ... + 70 °C
Humidity: <93%, except dewing
Mounting: On 35mm DIN rail
Operation: – 5 °C ... + 45 °C
Storage: –25 °C ... + 55 °C
Transport: – 25 °C ... + 70 °C
Humidity: <93%, except dewing
Mounting: On 35mm DIN rail
