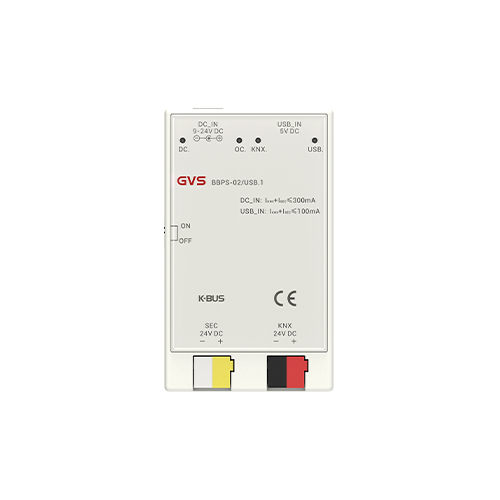

KNX Commissioning

KNX Commissioning is designed for an intelligent building control system, which is used for producing and monitoring KNX system voltage, and also used for facilitating communication between the PC and the KNX system. The device supports 2 power supply: DC interface and Type-C interface. It has 2 outputs, one designated for auxiliary voltage output and the other for KNX bus power and communication.

Model

BBPS-02/USB.1

Manual

Product parameter

Power Supply
Input voltage
DC, 9~24V DC; Type-C, 5V DC
Output
KNX nominal voltage
1 line with integrated choke, 24~26V DC
Interface
Type-C interface

Connection
KNX output
Bus connection terminal(Red/Black)
Environment
Humidity <93%, except dewing
Dimension ：91 × 54 × 26 mm
Weight ：0.15kg
Mounting ：As required
