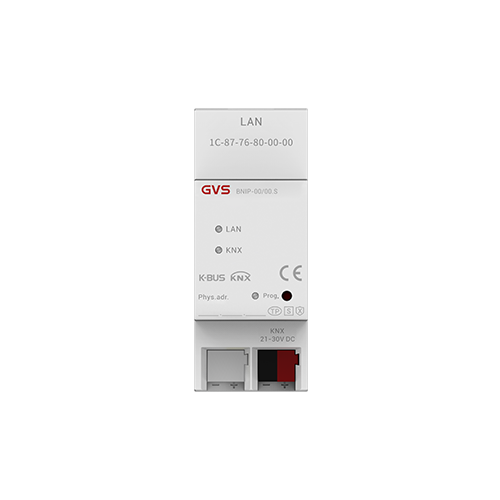

KNX/IP Interface with Secure

RJ45 socket for10/100Base-T, IEEE 802.3 network, auto sensing, support max. 5 clients. Support KNX IP Secure, No need auxiliary power.

model

BNIP-00/00.S

manual

database

Product parameters

Weight: 0.1KG
Dimensions: 36×90×64 mm
Operation voltage: 21-30V DC, via the KNX bus
Current consumption: <19.5mA, 24V; <15.5mA, 30V
Power consumption: <470mW
Housing, colour: Plastic housing, Beige

Connections: KNX, Via bus connection terminal (red/black)
Operation: – 5 °C ... + 45 °C
Storage: –25 °C ... + 55 °C
Transport: – 25 °C ... + 70 °C
Humidity: <93%, except condensation
Design: Modular installation device, on 35mm mounting rail
