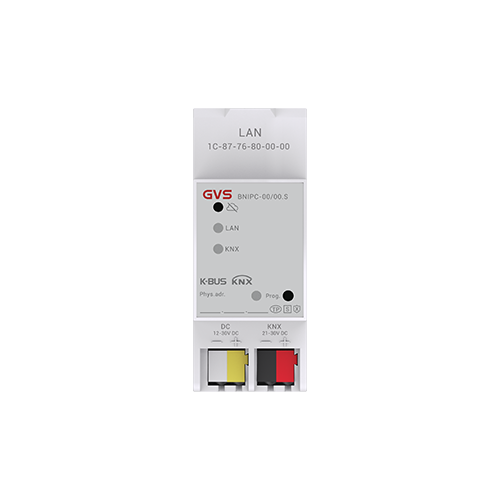

KNX/IP Interface (with KNX Secure)
KNX/IP Interface (with KNX Secure)

KNX/IP Interface (with KNX Secure)

The IP Router can be used as line or backbone coupler. It provides a data connection between the upper KNXnet/IP line (main line or backbone) and the lower TP KNX bus line (sub line). The basic functionality of the IP Router is to couple the Ethernet with one or more KNX-TP lines. The IP Router features a galvanic isolation between the Ethernet and the KNX-TP line(s).

Description

The IP Router can be used as line or backbone coupler. It provides a data connection between the upper KNXnet/IP line (main line or backbone) and the lower TP KNX bus line (sub line). The basic functionality of the IP Router is to couple the Ethernet with one or more KNX-TP lines. The IP Router features a galvanic isolation between the Ethernet and the KNX-TP line(s). Due to its flexibility the IP Router can be used as a line coupler e.g. to connect several KNX TP lines via Ethernet. And it can be used as a backbone coupler to connect several TP areas or different TP installation systems via Ethernet.

share
  • Bus voltage
    21-30V DC, via the KNX bus
  • Bus current
    <19.5mA, 24V; <15.5mA, 30V
  • Bus consumption
    <470mW
  • KNX
    Bus connection terminal (Red/Black)
  • LAN
    RJ45 socket for 100/10 Base-T
  • Operation
    –5 °C ... + 45 °C
  • Storage
    –25 °C ... + 55 °C
  • Transport
    – 25 °C ... + 70 °C
  • Humidity
    <93%, except dewing
  • Protection
    IP 20 to EN 60529
  • Dimensions
    36×90×64mm
  • Weight
    0.1KG
  • Housing, colour
    Plastic housing, beige
  • Design
    Modular installation device, on 35mm mounting rail
  • Model
    BNIP-00/00.S
