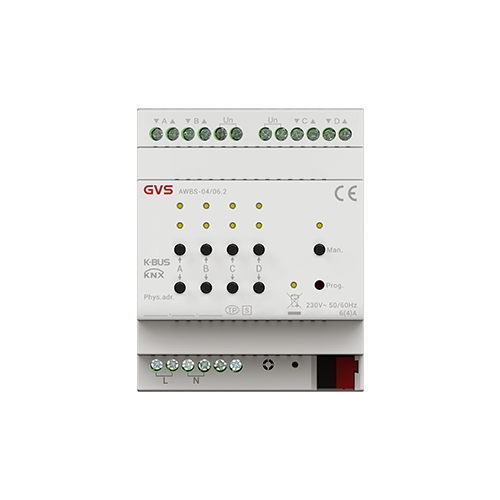

KNX Shutter Actuator 4-Fold
KNX Shutter Actuator 4-Fold

KNX Shutter Actuator 4-Fold

Manual&Database

4 independent outputs, each with 1 changeover contact (UP/DOWN mechanically interlocked), Max. switching current 6A resistive，370W Motor. Installation: DIN-rail Mounted

Description

  • Movement UP/DOWN  Stop/Louver adjustment

  • Move into preset position (up to 2 preset positions)

  • Set preset position (modification of the preset position during operation)

  • Move to position 0…100%  Adjustment louver to position 0…100% (only Blind working mode)

  • Scenes  Automatic sun protection  Monitoring of wind, rain and frost protect (cyclical)

  • Block  Forced operation  Status reply of the current position, status reply of the current operating mode

  • Two operation mode: Venetian Blind and Shutter

share
Additional information
  • Bus voltage
    21-30V DC, Via KNX/EIB
  • Bus current
    <9mA, 24V；<7.5mA, 30V
  • Bus consumption
    <225mW
  • Voltage
    100~240V AC, 50/60Hz
  • Current
    <17mA, 220V AC
  • Consumption
    <3.7W, 220V AC
  • Number of outputs
    4 independent outputs, each with 1 changeover contact (UP/DOWN mechanically interlocked)
  • Nominal voltage
    230V AC
  • Load capacity
    300W
  • Programming LED and button
    For assignment of the physical address
  • KNX
    Bus connecting terminal (black/red)
  • Load circuits/230V AC input
    Screw terminals, Wire Range Multi-core 0.2-1.5mm2 Single core 0.2-2.5mm2 Torque 0.4N-m
  • Protection
    IP 20, EN 60 529
  • Operation
    -5°C……+45°C
  • Storage
    -25°C……+55°C
  • Transport
    -25°C……+70°C
  • Design
    Modular installation device, proM
  • Housing, Colour
    Plastic, Beige
  • Mounting
    On 35mm mounting rail, DIN EN 60 715
  • Dimensions
    72 x 90 x 64.1mm
  • Weight
    0.3KG
  • Certification
    KNX certified
  • Model
    AWBS-04/06.2
