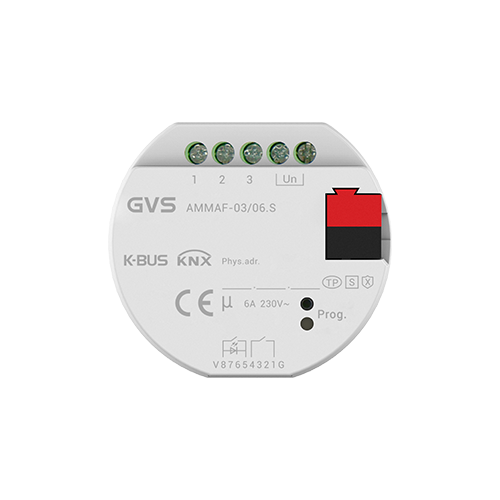

KNX Multi-function Actuator Mini 3-Fold (Secure)

KNX Multi-function Actuator Mini 3-Fold (Secure)

The Multifunctional Actuator, 3-Fold, 6A, Flush Mounted (Referred to as Multifunctional actuator) is a module that integrates multiple relay output functions, including switch output, curtain output, fan output or valve output, in addition to dry contact input and LED output indication functions. The corresponding output function can be configured according to actual application requirements.
Model
AMMAF-03/06.S
Product parameter
Bus voltage: 21~30 V DC, via the KNX bus
Bus current: <18.1mA/24V, <14.7mA/30V
Bus consumption: <441.0mW
Capacitor charge current: <24mA
Operation: -5℃ ~+ 45℃
Storage: -25℃ ~+ 55℃
Transport: -25℃ ~+ 70℃
Humidity: <93%, except dewing
