KNX Universal Dimming Actuator 1/2/4-Fold
KNX Universal Dimming Actuator,1/2/4-Fold (hereinafter referred to as Dimmer) has 1/2/ 4 output channels, and it can connect with dimmable lamps (such as incandescent lamps, halogen lamps, energy-saving lamps, LED, etc.), and you can dim, preset scene, switch these lamps or other operations via the bus. In addition, as well as KNX Data Secure.
model

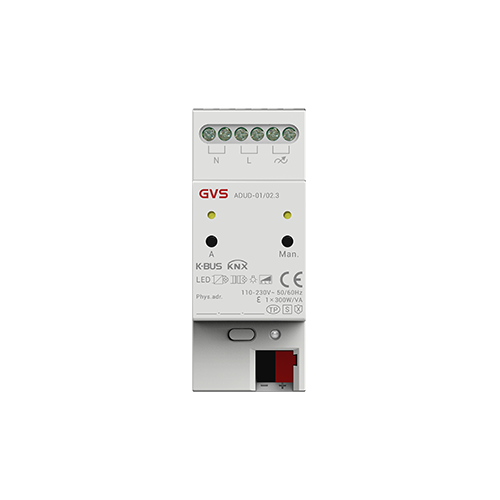

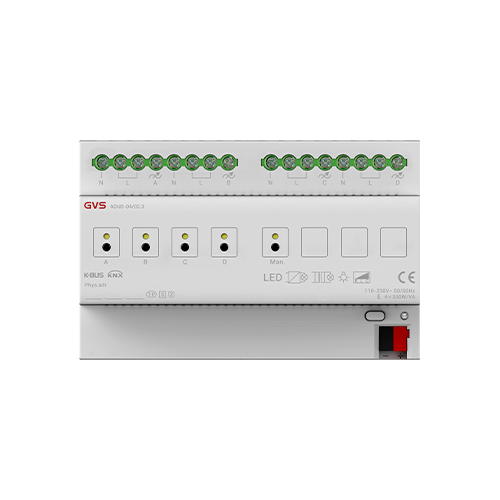

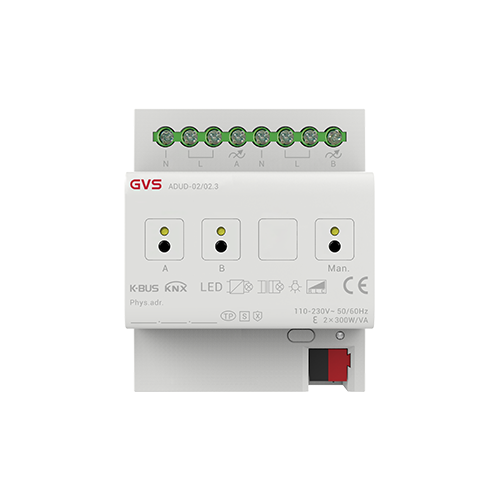

ADUD-01/02.3；ADUD-02/02.3；ADUD-04/02.3
Product parameters
Bus voltage: 21-30V DC，via the KNX bus
Bus current: <6mA/24V, <5.5mA/30V (1 fold)
<7mA/24V, <6mA/30V (2 fold)
<7.5mA/24V, <6.5mA/30V (4 fold)
Bus consumption: <165mW(1fold); <180mW(2fold);
<195mW(4fold)
Bus current: <6mA/24V, <5.5mA/30V (1 fold)
<7mA/24V, <6mA/30V (2 fold)
<7.5mA/24V, <6.5mA/30V (4 fold)
Bus consumption: <165mW(1fold); <180mW(2fold);
<195mW(4fold)
Dimming channel: 1/2/4 folds,separate phase
connection
Connection; KNX: Bus connection terminals
Outputs: Screw terminals
Wire Range:0.2-2.5mm2(1 fold); 0.2-6.0mm2(2/4 fold)
Mounting: On 35mm mounting rail
connection
Connection; KNX: Bus connection terminals
Outputs: Screw terminals
Wire Range:0.2-2.5mm2(1 fold); 0.2-6.0mm2(2/4 fold)
Mounting: On 35mm mounting rail
Operation: -5 °C ... +45 °C
Storage: -25 °C ... + 55 °C
Transport: -25 °C ... + 70 °C
Humidity: <93%, except dewing
Storage: -25 °C ... + 55 °C
Transport: -25 °C ... + 70 °C
Humidity: <93%, except dewing
