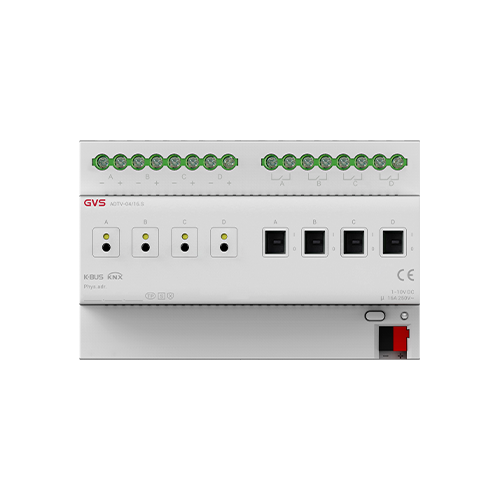

KNX 1-10V Dimming Actuator 4-Fold, 16A
KNX 1-10V Dimming Actuator 4-Fold, 16A

KNX 1-10V Dimming Actuator 4-Fold, 16A

Manual&Database

Passive DC 0/1-10V drive mode, switch current 16A /250V AC, no additional voltage input. KNX functions including swicthing, relative & absolute dimming, status response, scene control (15 folds), preset, staircase lighting etc. Installation: DIN-rail Mounted

Description

1.Switching

2.Relative and absolute dimming

3.Status report, error report

4.Scene and preset function

5.Staircase lighting function

6.Preset a Brightness value after bus voltage recovery

7.Passive DC 0/1-10V drive mode

8.Manual operation and status indication


share
Additional information
  • Bus voltage
    21-30V DC, Via KNX bus
  • Bus current
    <12mA
  • Bus consumption
    <360mW
  • Output voltage
    1-10V DC, max.100mA per channel
  • Switching current
    16A/250V AC, If fluorescent lamp, max.10A/250V AC(140μF)
  • Model
    ADTV-04/16.2
