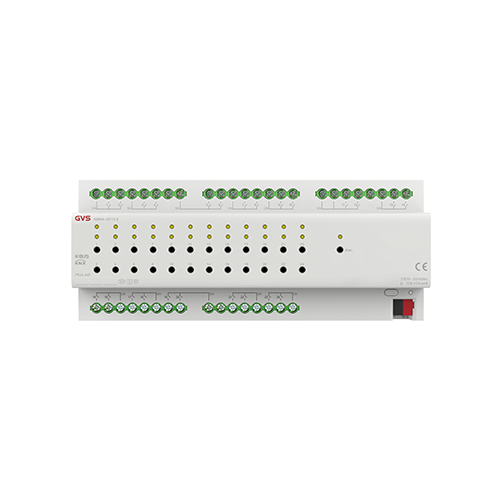

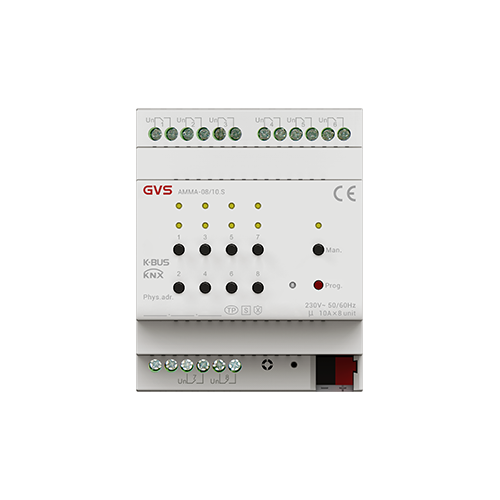

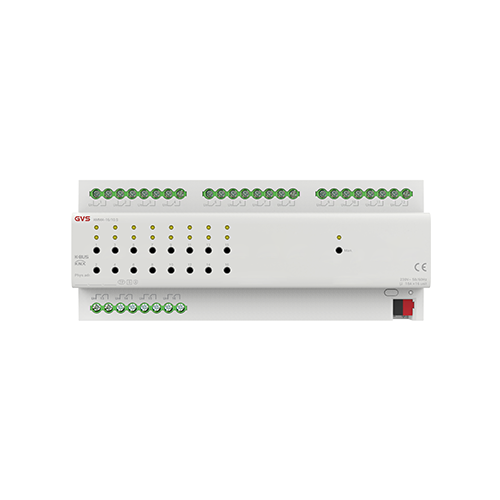

KNX 8/16/24-Fold Multi-function Actuator, 10A
KNX 8/16/24-Fold Multi-function Actuator, 10A
KNX 8/16/24-Fold Multi-function Actuator, 10A
KNX 8/16/24-Fold Multi-function Actuator, 10A
KNX 8/16/24-Fold Multi-function Actuator, 10A
KNX 8/16/24-Fold Multi-function Actuator, 10A

KNX 8/16/24-Fold Multi-function Actuator, 10A

Manual&Database

10A/channel, un rated voltage 250V AC, 50-60Hz, high-current magnetic relay, max. switching current 16A. Main KNX functions including, switching, status response, scene control (8 folds), time switching, preset, logic function, threshold, forced operation, shutter (AC/DC/dry contact motor type), valve, heating, fan control.Installation: DIN-rail Mounted

Description
share
Additional information
  • Operation voltage
    21~30V DC, via the KNX bus
  • Current consumption, bus
    <12mA
  • Charging current, bus
    <20mA
  • Power consumption, bus
    <360mW
  • Connection
    KNX Via bus connection terminals，Ø 0.8 mm
  • Protection
    IP 20, EN 60 529
  • Operation
    -5℃...+45℃
  • Storage
    -25℃...+55℃
  • Transport
    -25℃...+70℃
  • Rel. humidity
    <93%, except dewing
  • Design
    Modular installation device (MDRC)
  • Housing/color
    Plastic, beige
  • Installation
    On 35mm DIN-Rail, To EN 60 715
  • Dimension/Weight
    72 mm×90mm×64mm (AMMA-08/10.1) / 0.2KG 216 mm×90mm×64mm (AMMA-16/10.1) / 0.6KG 216 mm×90mm×64mm (AMMA-24/10.1) / 0.7KG
  • Model
    AMMA-08/10.1、AMMA-16/10.1、AMMA-24/10.1
