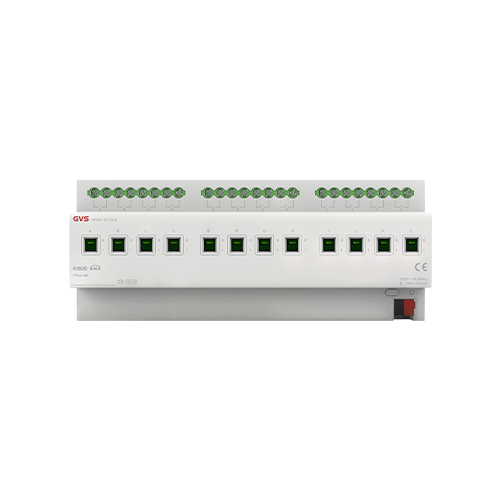

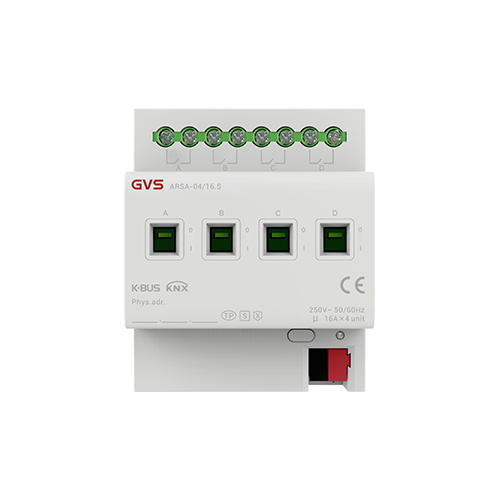

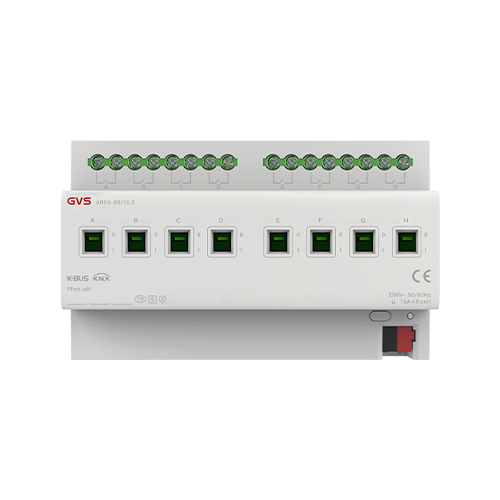

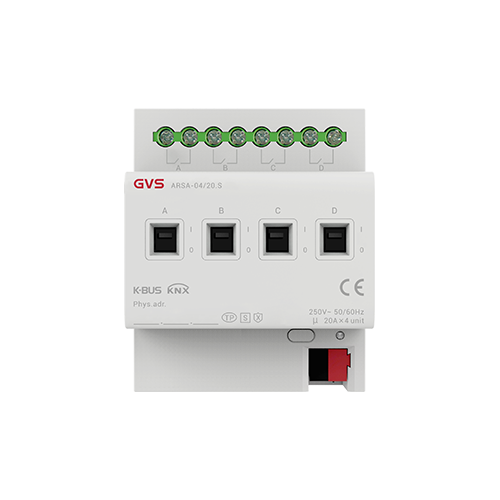

KNX Switch Actuator 4/8/12-Fold, 20A
KNX Switch Actuator 4/8/12-Fold, 20A
KNX Switch Actuator 4/8/12-Fold, 20A
KNX Switch Actuator 4/8/12-Fold, 20A
KNX Switch Actuator 4/8/12-Fold, 20A
KNX Switch Actuator 4/8/12-Fold, 20A

KNX Switch Actuator 4/8/12-Fold, 20A

Manual&Database

20A/channel, un rated voltage 250V AC, 50-60Hz, high-current magnetic relay, max. switching current 40A switching/heating actuator operation mode. Main KNX functions including switching, status response, scene control (5 folds), time switching, preset, logic function, threshold, forced operation etc. Installation: DIN-rail Mounted

Description

1.Manual switch operation

2.Switch and Status response

3.Reaction after bus voltage failure and recovery

4.Scene and preset control

5.Logic operation with AND, OR, XOR, gate function

6.Forced operation and Safety function

7.Threshold and time function

8.Control of electro thermal valve drives


share
Additional information
  • Bus voltage:
    21-30V DC, Via KNX bus
  • Bus current:
    <12mA
  • Bus consumption:
    <360mW
  • Un rated voltage:
    250V/440V AC (50/60Hz)
  • In rated current:
    20A
  • Load capacity:
    20A/200uF
  • Max.switching current:
    40A/250V AC
  • Machanical endurance:
    >100x10000
  • Electrical endurance:
    >1x10000
  • Model
    KA/R 0420.1、KA/R 0820.1、KA/R 1220.1
