KNX Universal Interface 4/8-Fold, 12V DC
KNX Universal Interface 4/8-Fold, 12V DC

KNX Universal Interface 4/8-Fold, 12V DC

Can be individually configured per input (4/8) & LED output(4/8) , bus length≤10M, input 20V DC, output 12V DC. Main KNX functions including switching, dimming, shutter control, scene control, value sending, RGB, shift register,multiple operation, delay mode, 8 group event,8 logic functions. Fits in all types of standard wall boxes.

Description



Universal Interface with 12V LED output, 4-Fold

CTUI-04/04.1

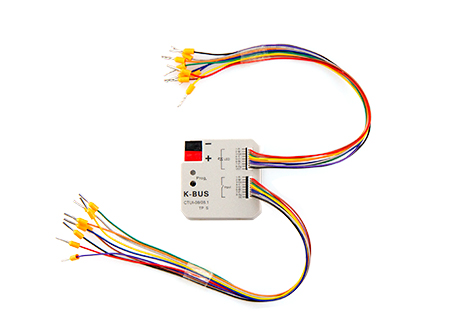

Universal Interface with 12V LED output, 8-Fold

CTUI-08/08.1


  • Switching and dimming

  • Shutter function

  • Value sending

  • Recall and storage scene

  • Shift register function

  • RGB and RGBW dimming

  • Multiple operation

  • Delay mode

  • logic functions

  • Event Group function

  • LED indication,support external power 12V or 24VDC


share
  • Bus voltage
    21-30V DC, Via KNX/EIB
  • Bus consumption
    <360mW
  • LED drive voltage:
    Built-in power 12V DC
  • LED drive voltage:
    External power 12 or 24V DC
  • LED drive current
    Approx.0.9mA
  • Model
    CTUI-04/04.1、CTUI-08/08.1
