KNX Universal Interface 4/8/16-Fold, DIN-rail Mounted
KNX Universal Interface 4/8/16-Fold, DIN-rail Mounted
KNX Universal Interface 4/8/16-Fold, DIN-rail Mounted
KNX Universal Interface 4/8/16-Fold, DIN-rail Mounted
KNX Universal Interface 4/8/16-Fold, DIN-rail Mounted
KNX Universal Interface 4/8/16-Fold, DIN-rail Mounted

KNX Universal Interface 4/8/16-Fold, DIN-rail Mounted

Manual&Database

Can be individually configured per input (4/8/16) , bus length≤100M, input 20V DC. Main KNX functions including switching, dimming, shutter control, scene control, value sending, RGB, shift register,multiple operation, delay mode, 8 group event,8 logic functions. Installation: DIN-rail Mounted

Description

Switching and dimming

Shutter control and Value sending

Scenario function

Shift register function

RGB and RGBW dimming

Multiple control

Delay sending(e.g. switching value, dimming value)

8 logic function

8 event group function (with 8 parameterizable output in each group)

share
Additional information
  • Power Supply
    21-30V DC, via KNX bus
  • Bus current
    4-Fold: <11mA, 24V; <9.5mA, 30V 8-Fold: <14.5mA, 24V; <12mA, 30V 16-Fold: <15mA, 24V; <13mA, 30V
  • Bus consumption
    <390mW
  • Inputs
    4/8/16-Fold input channels Can be individually configured function of input
  • Connection
    KNX Via bus connecting terminal (Diameter 0.8mm)
  • Design
    Modular DIN-Rail Component 35mm Din rail, modular installation
  • Size / Weight
    CTBIF-04/00.1: 36mm×90mm×64mm / 0.1KG CTBIF-08/00.1: 72mm×90mm×64mm / 0.15KG CTBIF-16/00.1: 72mm×90mm×64mm / 0.15KG
  • Model
    CTBIF-04/00.1、CTBIF-08/00.1、CTBIF-16/00.1

You May Also Like

KNX Presence Sensor with Constant Lighting FunctionKNX Presence Sensor with Constant Lighting Function
KNX Brightness & Motion Sensor 8MKNX Brightness & Motion Sensor 8M

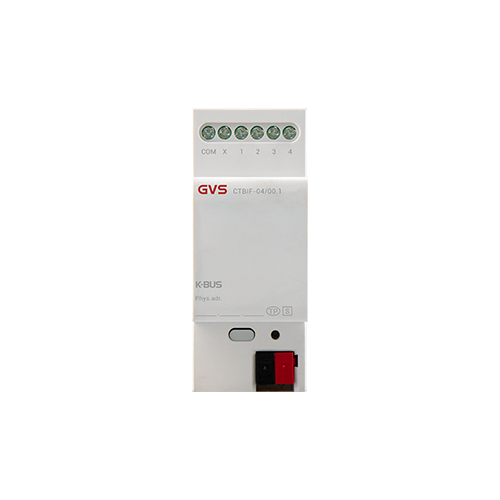

Binary Input for floating contact, 4/8/16-FoldBinary Input for floating contact, 4/8/16-Fold
KNX Universal Interface 4/8-Fold, 12V DCKNX Universal Interface 4/8-Fold, 12V DC

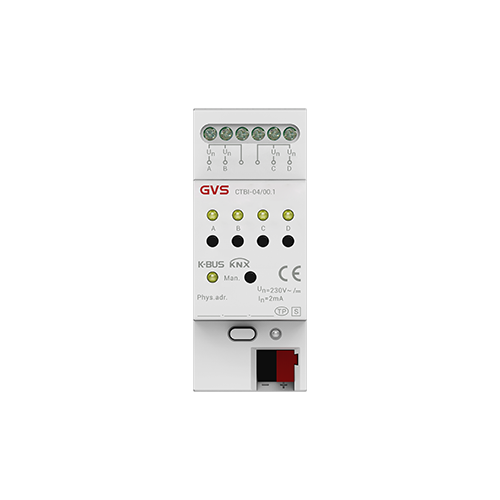

KNX Binary Input 4-FoldKNX Binary Input 4-Fold
