KNX Multifunctional Sensor
Multifunctional sensor is mainly applied in KNX smart system, connected to the bus via KNX
connection terminals and installed together with other devices on the bus to become a system. It’s
functionally simple, users can plan according to their own needs to performs these functions in the
system.
model

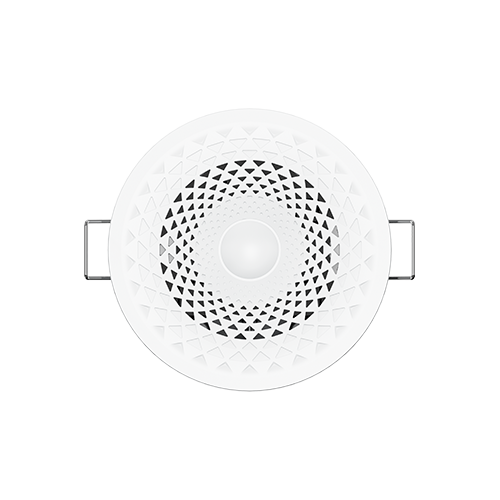

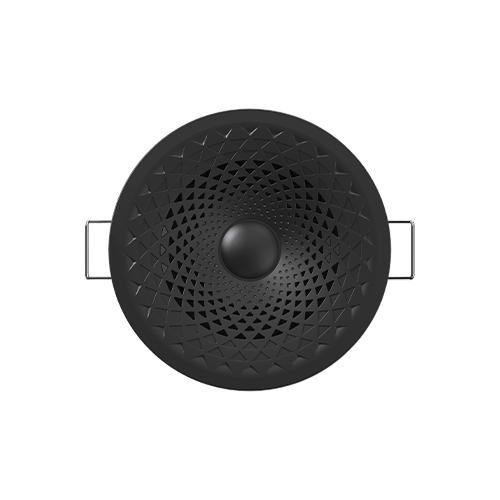

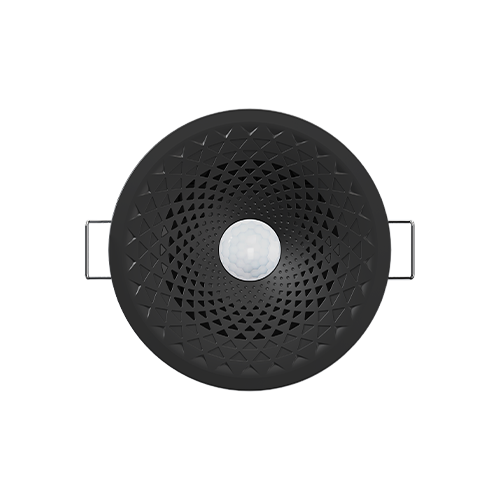

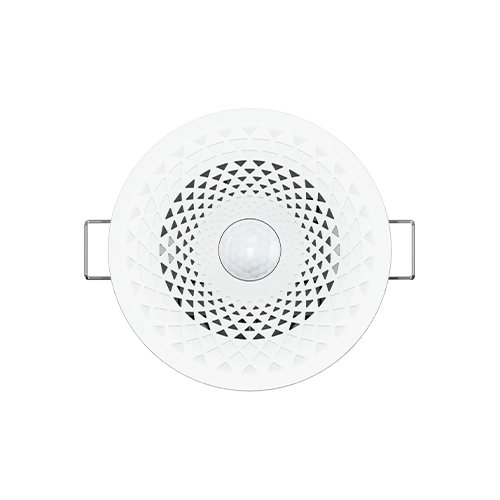

CSMS-04/00.1.0x（4 in 1） CSMS-05/00.1.0x（5 in 1） CSMS-06/00.1.0x（6 in 1） CSMS-09/00.1.0x（9 in 1） (x=0:White; x=1:Black)
Product parameters
Power supply
Bus voltage
21-30V DC, via the KNX bus
Bus current
<4mA/24V，<4mA/30V
Bus consumption
<100mW
Installation
Ceiling mounted or Surface mounted
Surface mounted with additional accessory CSMSA-00/0.1.0x
Mounting height 2.5-6m
Dimension
φ95*95*52.2mm
Weight
0.2kg
