KNX Binary Input for floating contact with Secure, 4/8/16-Fold

The Binary Input for floating contact with Secure, 4/8/16-Fold ( hereinafter being referred as Binary

Input) are mainly used in building control system. Via connection of KNX terminals (black/red), these

devices will be connected to the KNX BUS system to realize different functions in KNX system, and their

functions are both simple to operate and intuitive, users can program it according to the requirement to

implement the function systematically.

model

CTBIF-04/00.S，CTBIF-08/00.S，CTBIF-16/00.S

manual

database

Product parameters

Power Supply

Bus voltage

21-30V DC, via KNX bus

Bus current

4-Fold: <9.5mA, 24V；<8.5mA, 30V

8-Fold: <11.5mA, 24V；<9.5mA, 30V

16-Fold: <14.0mA, 24V；<12.0mA, 30V

Bus consumption

<360mW

Design

Modular DIN-Rail Component

35mm Din rail, modular installation

Size / Weight

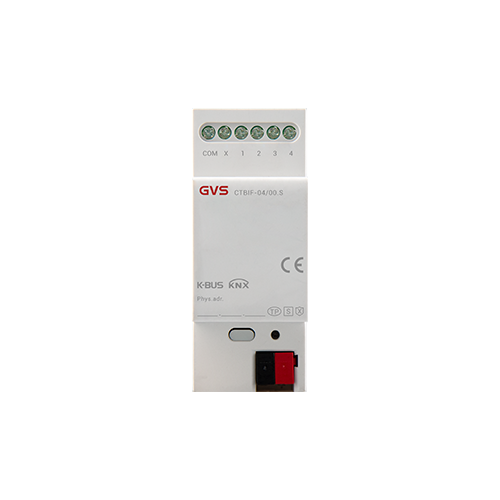

CTBIF-04/00.1: 36mm×90mm×64mm / 0.1KG

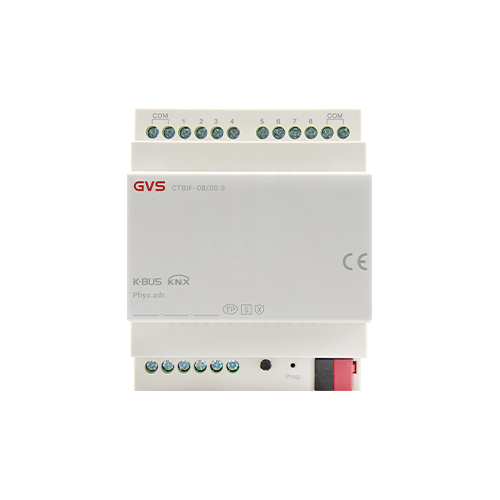

CTBIF-08/00.1: 72mm×90mm×64mm / 0.15KG

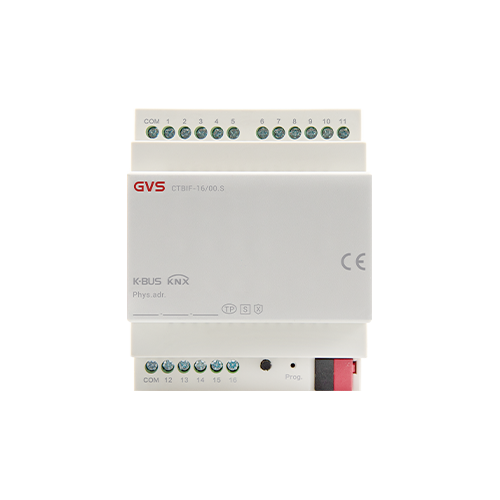

CTBIF-16/00.1: 72mm×90mm×64mm / 0.15KG
