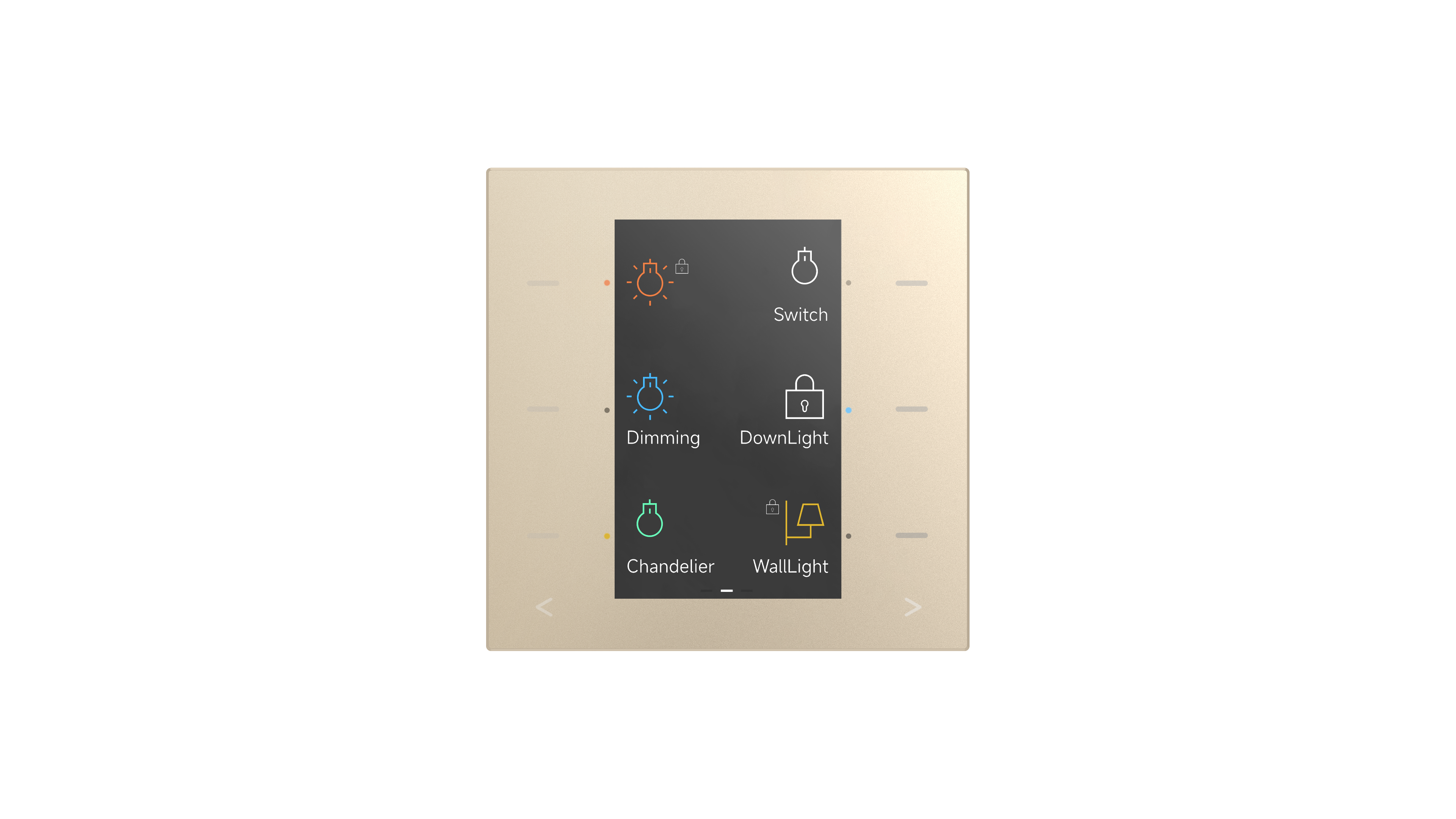

S series KNX Push Button Sensor with Display,1/2/3-gang

S series KNX Push Button Sensor with Display,1/2/3-gang

KNX Push Button Sensor with Display,1/2/3-gang integrates the basic control functions of Switch, Dimming, RGB/RGBW lighting, Colour temperature control, Blind, Scene, Value sender, Shift register, Multiple operation, Delay mode, and has a built-in temperature sensor to detect the local ambient temperature and supports RGB indication function.

Model

CHPBD-02/12.x.1y CHPBD-04/24.x.1y CHPBD-06/36.x.1y (x=1: Normal glass; x=2: Mirror glass) (y=0: White; y=1: Black)

Manual

Product parameter

Bus current
<15mA/24V; <13mA/30V (1-gang)
<20mA/24V; <15mA/30V (2-gang)
<26mA/24V; <20mA/30V (3-gang)
Bus consumption
<0.4W (1-gang)
<0.48W (2-gang)
<0.63W (3-gang)

Dimension ：86 × 86 × 35.6mm
Weight ：0.17kg
Environment ：Humidity <93%, except dewing
Connection ：KNX，Bus connection terminal(Red/Black)
Mounting：European 80 type wall-mounted box

KNX S-series Push Button Sensor Display

AG Glass Touch Panel with Screen Display

Featuring a combination of display screen and touch buttons, meticulously designed for a central aesthetic appeal; crafted with Apple-grade AG glass, showcasing a unique frosted effect for a more delicate and premium touch; vibrant buttons indicator lights, unafraid of the darkness.

ETS Configuration for

Supports the configuration of \"Care Mode\" in ETS, allowing for larger text on the screen, a clearer and more concise interface, ensuring better visibility for elderly users.

Regular / AG Glass Has Its Own Advantages

Offering a choice between regular and AG glass, allowing to select based on your specific needs and preferences.

Multiple Proximity Sensing Modes

Featuring a built-in proximity sensor with 3 levels of sensing distances, reaching up to 120cm; no additional installation of proximity sensors required. Achieve screen activation when a person approaches and screen deactivation when the person leaves. Prevent blind pressing in night scenarios, offering a more humanized and intelligent experience.
