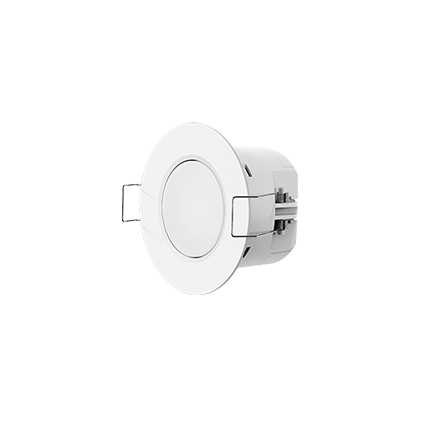

KNX Presence Sensor, Microwave

Diameter/radius 8m, max. mounting height 4m. With 24GHz microwave detection technology. Support 4 presence detector channels, and the first channel with 3 levels control, master/slave work mode, Constant lighting Control, RTC controller, Logic and scene group functions. Support KNX secure protocoalIntallation: Ceiling-mounted

Model

CSBPM-04/00.1.00

Manual

Product parameter

Weight: 0.05KG
Dimension: φ70 x 51.5mm
Bus voltage: 21-30V DC, via the KNX bus
Bus current: <6.5mA / 24V; <5.5mA / 30V
Bus consumption: <165mW
Illuminance: 0-2000lux

Connection: KNX, Bus connection terminal
Operation: -5 °C ... 45 °C
Storage: -25 °C ... 55 °C
Transport: -25 °C ... 70 °C
Humidity: <93%, except dewing
Mounting: Ceiling mounted, Flush mounted
in 80 mm or 86mm box
